1450G
xinglong
Flute laminator machine
Electric
New
China,Hebei
1 Year
Ordinary Product
High speed
Video Technical Support
Optional
Easy to Operate

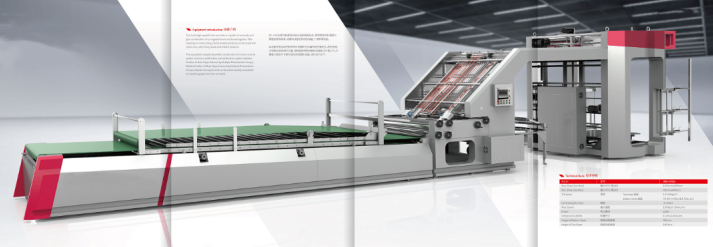

INTELLIGEN HIGH SPEED FLUTE LAMINATOR MACHINE
INTRODUCTION:
The main function of 1450 intelligent high-speed laminating machine is to make paper and cardboard fit together so as to increase the strength and thickness of material or special effect. Billboards, etc.
The equipment adopts the perfect combination of motion control system and servo correction and correction system, and controls the servo motor on both sides of the surface paper to do independent compensation by using the relative position of multi-group photoelectric induction base paper, so that the adjustment equipment can be completed automatically by inputting the size of the paper. Run and produce.
TECHNICAL PARAMETER
| Model | 1450G | 1650G |
| Max sheet size (W*L) | 1450mm*1200mm | 1650mm*1450mm |
| Min sheet size (W*L) | 400mm*400mm | 400mm*400mm |
| Top paper thickness | 150~800g/m² | 150~800g/m² |
| Bottom sheet thickness | Corrugated:0.5-10mm（B,A,AB,E flute，etc.） Paper:＞350g | |
| Laminating Accuracy | Corrugated:±1mm (Corrugated paper flat without hairy edge can reach ± 0.5mm) Paper:±0.5mm | |
| Max speed | 12000p/h 9000m/h | 12000p/h 9000m/h |
| Power | 22KW | 22KW |
| Dimension (L*W*H) | 13500*2400*2400mm | 14500*2600*2600mm |
| Height of Bottom Paper | 400mm | 400mm |
| Height of Top Paper | 1800mm | 1800mm |
| Machine weight | 6200KG | 7000KG |
Paper mounting accuracy：the standard precision is ±1mm，at a speed less than 9000 sheets per/hour,the accuracy can reach to ±0.5mm.
Glue consumption ：glue consumption is generally 25 to 30 grams per square meter, operator's operation technology and pit type of pit paper will also affect glue consumption.
BOTTOM SHEET SYSTEM
●Import servo motor is used to drive the suction belt bottom paper conveying structure, matching the Japanese neon suction belt and SMC high frequency valve, so that the base paper (corrugated, paper jam) transmission distance is accurate and smooth.
●Pit paper bending, pneumatic press can press the front end of the pit paper, to ensure smooth paper.
TOP PAPER SYSTEM
●Adopt the structure of four-suction and four-feed paper, conjugate cam structure to feed paper, feed paper smoothly and reliably.
●Valve core easy to disassemble, easy to clean.
●The adjustment of paper deviation and split suction nozzle can be carried out under the condition of not stopping.
DRIVE SYSTEM
●Power transmission uniform distribution, the whole machine adopts imported double-sided tooth synchronous belt transmission, maintenance-free. Bottom noise. high efficiency
POSITIONING AND GLUING SYSTEM
●High-precision glue roller, fine grinding to ensure uniform gluing
●The specially machined copper block ensures that the high-speed rollers do not get rid of the rubber, overflow the rubber and adjust the backflow of the glue, ensure the cleaning of the equipment and the service life of the bearing.
●By using many groups of photoelectric detection and calculating the error value between the surface paper and the bottom paper, the servo motor on both sides of the surface paper is controlled to compensate the surface paper to the predetermined position for the same precision fitting.
ELECTRIC CONTROL SYSTEM
QUALITY ASSURANCE AND SERVICE ASSURANCE
1. The product design obeys the user's opinion, constantly improves, and ensures the stability and humanization of the whole machine from the design point of view.
2. The company's quality control department to purchase, processing, assembly of all aspects of quality supervision and management, multi-angle management to ensure the implementation of the company's product quality management.
3. The company quality control department to each finished product in accordance with the factory product standards for inspection.
4.Strong technical strength and efficient after-sales service team guarantee to solve all kinds of problems in the process of customer use, perfect quality information feedback management, make the product improve quickly, and always be in the leading position of technology.
TECHNICALLY TRAINING
Our company sends the professional operation engineer to be responsible for the installation and debugging of the equipment as a whole. During the debugging process, we train the operator for the user in the factory of the customer. The contents are: introduction of the mechanical structure, adjustment of the components of the equipment, etc. The use of electrical operation switches and precautions, equipment daily maintenance and maintenance, in order to ensure the normal operation of the equipment in the future;
This product after-sales service is the responsibility of our company in the local nearest service center and the distributor: the company has the strong technical personnel and the after-sales service personnel team, carries on the exchange with the dealer and the user technical personnel regularly, And according to the market situation to the distributor after-sales service personnel training from time to time.
ONE-YEAR WARRANTY LIFE TIME MAINTENANCE
Since the date of purchase of the machine, our company will provide installation, due to quality causes maintenance and replacement services (vulnerable parts and technical support after acceptance is not in the warranty scope); But human improper operation, non-mechanical quality problems caused by the accident, our company will charge the cost of the main components;
One year from the date of purchase, there are some failures in the customer's equipment. Our company will provide paid services to the customer, including technical support, fault maintenance and replacement of the original factory accessories.
